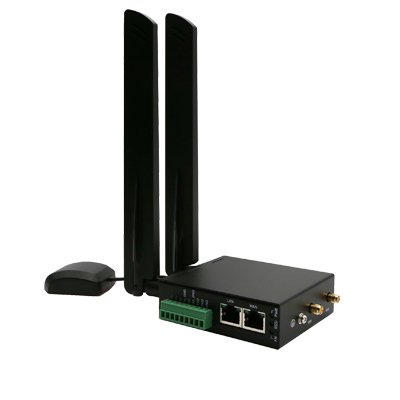

Xentino MR430 Industrial 4G/LTE Cellular Router.

Xentino MR430 Industrial 4G/LTE Cellular Router.


XENTINO MR430 and MR430-W, compact, lightweight and cost-effective Industrial 4G LTE Cellular Routers, are built in 2-port fast Ethernet connection as well as support 2G/3G/4G mobile networks for wired and wireless communication in harsh environments.

XENTINO MR430 and MR430-W, compact, lightweight and cost-effective Industrial 4G LTE Cellular Routers, are built in 2-port fast Ethernet connection as well as support 2G/3G/4G mobile networks for wired and wireless communication in harsh environments. Equipped with RS232 serial port and digital input/output interfaces, the MR430 and MR430-W are simple to configure and collect real-time data transmission quickly for Industrial IoT and machine-to-machine applications. The MR430-W is also compliant with IEEE 802.11b/g/n Wi-Fi connectivity.

Cellular Interface

  • Standards: (Please see ordering information for optional band)
  • 4G: FDD LTE, TDD LTE
  • 3G: WCDMA
  • 2G: GSM/EDGE
  • LTE Data Rate: Cat 4, 150Mbps (DL), 50Mbps (UL)

Wi-Fi Interface (MR430-W Model)

  • Compliant with IEEE 802.11 b/g/n Wi-Fi standards
  • 2.4 GHz radio band for wireless
  • 2T2R 300 Mbps wireless operation rate
  • Wireless security with WPA2-PSK(AES)
  • Multiple SSIDs
  • Wireless MAC Filtering
  • Wireless client isolation

Hardware Interface

  • High Performance 550 MHz SoC with 128MByte Flash
  • 1 x Micro SIM Connector (push-push type)
  • 1 x LAN 10/100 Mbps Ethernet port
  • 1 x WAN 10/100 Mbps Ethernet port
  • WPS / RESET Button
  • 1 x RS232 (TXD/RXD/GND)
  • 1 x DI (Non-Isolated), 1 x DO (Non-Isolated)
  • 2 x SMA connectors for detachable LTE Antenna
  • 2 x RP-SMA connectors for detachable Wi-Fi Antenna

(MR430-W Model)

  • 1 x SMA connector for detachable GPS antenna

Physical Characteristics

  • Enclosure：Metal Case
  • Dimensions (W x H x D)：91mm x 28mm x 74mm
  • Weight：250 g (0.5512 lb)
  • Installation：DIN Rail (Default) / Wall Mount (Optional)

LED Display

  • 1 x Power LED
  • 1 x Ethernet LED for each port (LAN/WAN)
  • 1 x RSSI LTE LED
  • 1 x Function LED (User define by Web)

Power Supply

  • Power Consumption  7 Watts(Max)
  • Power Input  8 ~ 48VDC

Software

  • Network Protocols:

IPv4, IPv6, IPv4/IPv6 dual stack, DHCP server and client,

PPPoE, Static IP, SNTP, GPS sync time, DNS Proxy,

VRRP, OSPF, Message Queue Telemetry Transport

(MQTT Broker), BGP, Flow (Modbus master ↔ MQTT client)

  • Routing/Firewall:

NAT, Virtual Server, DMZ, MAC Filter, URL Filter, IP Filter,

VLAN, Static Routing and RIP-1/2, IPS, Policy Route

  • VPN:

OpenVPN, IPSec (3DES, AES128, AESMAYIS6, AES256,

MD5, SHA-1, SHA256), GRE, PPTP, L2TP

  • Wireless Connectivity:

WAN WiFi Client

  • Others:

DDNS, QoS, UPnP, SMS Action, GPS Track Drawing,

GPS TCP Push

  • Alarm:

DI, DO, SMS, VPN/WAN Disconnect, SNMP Trap, E-mail,

TR069

Management Software

  • Web GUI for remote and local management, CLI
  • Syslog monitor
  • SNMP, TR069
  • FOTA (Firmware over the Air)
  • Remote management via SSH v2, HTTPS
  • Local management via Telnet, SSH v2, HTTP/HTTPS

Environment

  • Operating Temperature    -30 ~ +70°C
  • Storage Temperature      -40 ~ +85°C
  • Ambient Relative Humidity  10 ~ 95% (non-condensing)
  • Humidity                   0 ~ 95% (non-condensing)

Standards and Certifications

  • EMC：CE, FCC
  • EMI：EN 301489 , FCC Part 15B Class B
  • EMS：EN 301489
  • Vibration：IEC60068-2-6
  • Radio : EN 301511, EN 30MAYIS08-1, EN 30MAYIS08-2, EN 30MAYIS08-13, EN 300328, EN 303413, EN 62311







Xentino MR430 Datasheet
