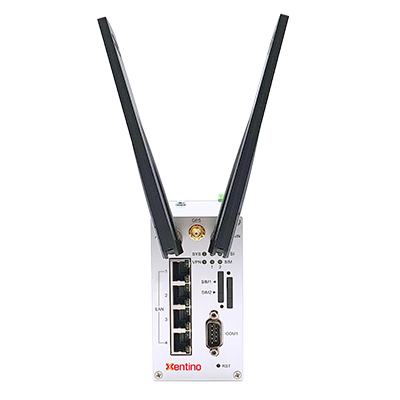

Xentino MR402-LG Industrial 4G/LTE Cellular Router

Xentino MR402-LG Industrial 4G/LTE Cellular Router


Xentino MR402-LG is an industrial-grade 4G LTE Cellular Router with 4-port 10/100 Mbps Ethernet interfaces for mission-critical cellular communication. 4x LAN, 3xSMA Antenna Connector (MAIN+AUX,GPS), 2xSIM Card Slots, -20 ~ +70°C

Xentino MR402-LG is an industrial-grade 4G LTE Cellular Router with 4-port 10/100 Mbps Ethernet interfaces for mission-critical cellular communication. 4x LAN, 3xSMA Antenna Connector (MAIN+AUX,GPS), 2xSIM Card Slots, -20 ~ +70°C

Product Overview

Xentino MR402LG is an industrial-grade 4G LTE Cellular Router with 4-port 10/100 Mbps Ethernet interfaces for mission-critical cellular communication. Featured with powerful network protocols and VPN tunnels, Xentino MR402LG Industrial 4G LTE Cellular Router provides secure and reliable applications for mobile, M2M, and Industrial Internet of Things (IIoT) deployments.

To fulfill the market demand, Xentino MR402LG 4G LTE Cellular Router is built with hardened industrial components, approving severe HALT (Highly Accelerated Life Test) certification and wide operation rage from -20 to 70°C for harsh environments. Equipped with Dual SIM and GPS function, the MR402LG supports seamless wireless connectivity and displays accurate the fixed locations where the routers position for quickly managing existing devices. With the user-friendly interface, the MR402LG enables fast and easy configuration to reduce complicated settings.

Enhancing machine and machine communications efficiently for industrial networking, Xentino MR402LG Industrial 4G LTE Cellular Router is a highly suitable and cost-effective for your industrial solutions.

Key Features

  • Provide 4-port 10/100 Mbps Ethernet interfaces
  • Support multi-band connectivity with FDD LTE/ TDD LTE/ WCDMA/ GSM/ LTE Cat4　
  • Built-in dual SIM for network redundancy
  • Equipped with GPS for quickly and easily deploying your devices
  • Integrated dual detachable antenna against radio interference
  • LED indicators for connection and data transmission status
  • Industrial rated from -20 to +70°C for use in harsh environments
  • Metal housing with IP40 industrial grade protection
  • IPv6/IPv4 dual stack and all applications are IPv6 ready
  • Enable powerful network protocols with MQTT and SNTP
  • Enhance security and encryption for authentication and transmission
  • Web-based user-friendly interface for management and configuration

Specifications

LTE Interface

  • FDD LTE: B1/B3/B5/B7/B8/B20
  • TDD LTE: B38/B40/B41
  • WCDMA: B1/B5/B8
  • GSM: 900/1800 MHz
  • LTE Cat4

Processor & I/O Interface

  • High performance 528 MHz CPU with 512 Mbytes of DDR3 memory
  • 2 x SIM Card Slots
  • 4 x LAN 10/100 Mbps Ethernet ports
  • Reset Button
  • Console: 1 x RS232 (9-pin Sub-D)
  • 2 x SMA connectors for detachable LTE antenna
  • 1 x GPS detachable antenna (Optional)

Physical Characteristics

  • Enclosure：Metal Shell
  • Housing：IP40 Protection
  • Dimensions (W x H x D)：60 x 110 x 106 mm
  • Weight： 391 g (0.8620 lb)
  • Installation：DIN Rail (Default) or Wall Mount (Optional)

LED Display

  • 1 x System status LED (Green)
  • 1 x VPN status LED (Green)
  • 1 x SIM1 status LED (Green)
  • 1 x SIM2 status LED (Green)
  • Ethernet status LEDs (Green for LINK/ACT, Yellow for SPEED)
  • 2 x Mobile connection strength LEDs (Green)

Power Supply

  • Power Consumption  7 Watts(Max)
  • Power Input  10 ~ 32V DC

Environment

  • Operating Temperature    -20 ~ +70°C
  • Storage Temperature      -40 ~ +85°C
  • Ambient Relative Humidity  10 ~ 95% (non-condensing)
  • Humidity                   0 ~ 95% (non-condensing)

MTBF (mean time between failures)

  • MR402-LG : 148,930 hrs　(MIL-HDBK-217-FN2)

Software

Network Protocols:

  • IPv4, IPv6, IPv4/IPv6 dual stack, DHCP server and client,
  • SNTP, GPS sync time, DNS Proxy, VRRP, OSPF, Message
  • Queue Telemetry Transport (MQTT Broker), BGP

Routing/Firewall:

  • NAT, Virtual Server, DMZ, MAC Filter, URL Filter, IP Filter,
  • VLAN, Static Routing and RIP-1/2

VPN:

  • OpenVPN, IPSec (3DES, AES128, AESMAYIS6, AES256, MD5,
  • SHA-1, SHA256), GRE, PPTP, L2TP

Wireless Connectivity:

  • Two SIM for failover/ roaming over/ back up
  • Two SIM data usage control
  • Seamless multi WAN connections switch

Others:

  • DDNS, QoS, UPnP

Alarm:

  • SMS, VPN/WAN Disconnect, SNMP Trap, E-mail

Management Software

  • Web GUI for remote and local management, CLI
  • Dual Image firmware upgrade by Web GUI
  • Syslog monitor
  • SNMP, TR069
  • Remote management via SSH v2, HTTPS
  • Local management via Telnet, SSH v2, HTTP/HTTPS

Standards and Certifications

  • EMC：CE, FCC
  • EMI：EN 55032 Class A, FCC Part 15 Subpart B Class A
  • EMS：EN 55024 / EN 61000-4-2 (ESD) Level 3 / EN 61000-4-3 (RS) Level 3 / EN 61000-4-4 (EFT) Level 4 / EN 61000-4-5 (Surge) Level 3 / EN 61000-4-6 (CS) Level 3 / EN 61000-4-8 (PFMF) Level 4 / EN 61000-4-11 / EN 61000-6-2 (Industrial) / EN 61000-6-4 (Industrial)
  • Rail Traffic：EN50121-4
  • Vibration：IEC60068-2-6
  • Safety : EN60950-1
  • Highly Accelerated Life Test (HALT)
