Xentino VS82T VDSL2 M2 Telco Modem.

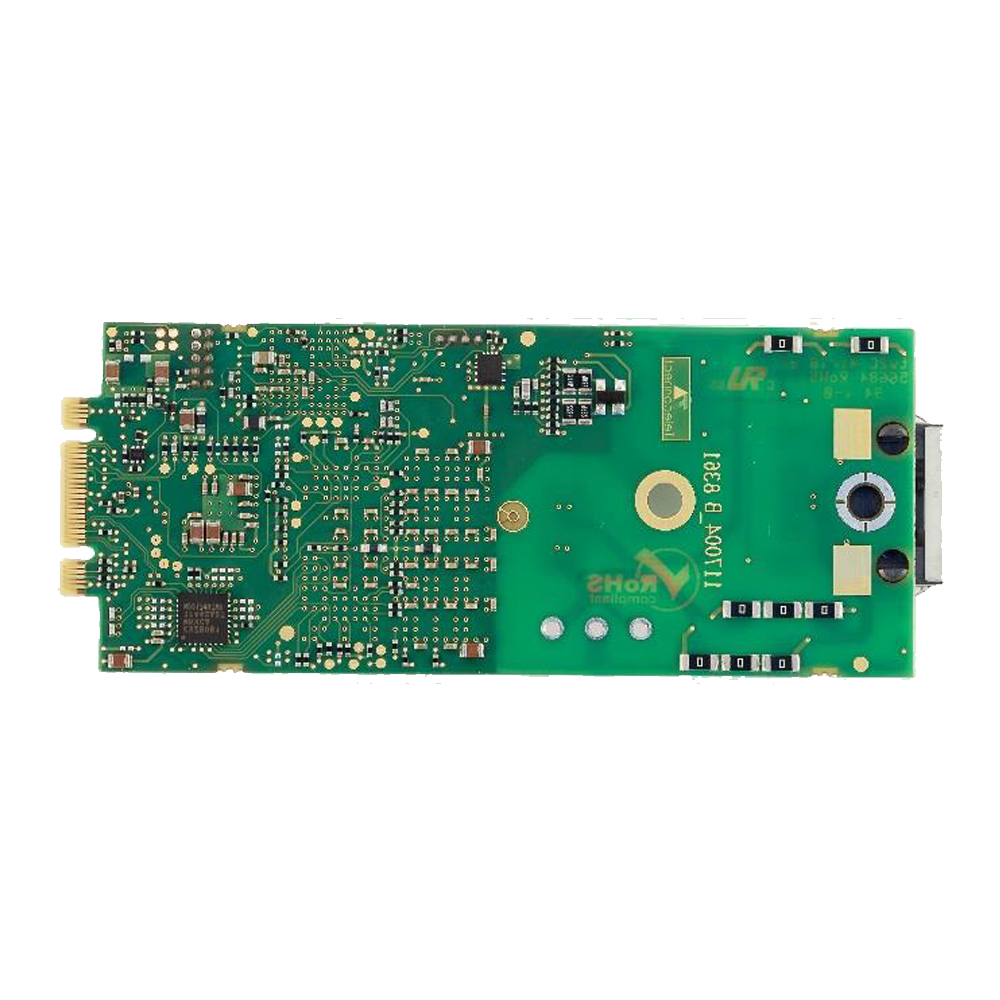

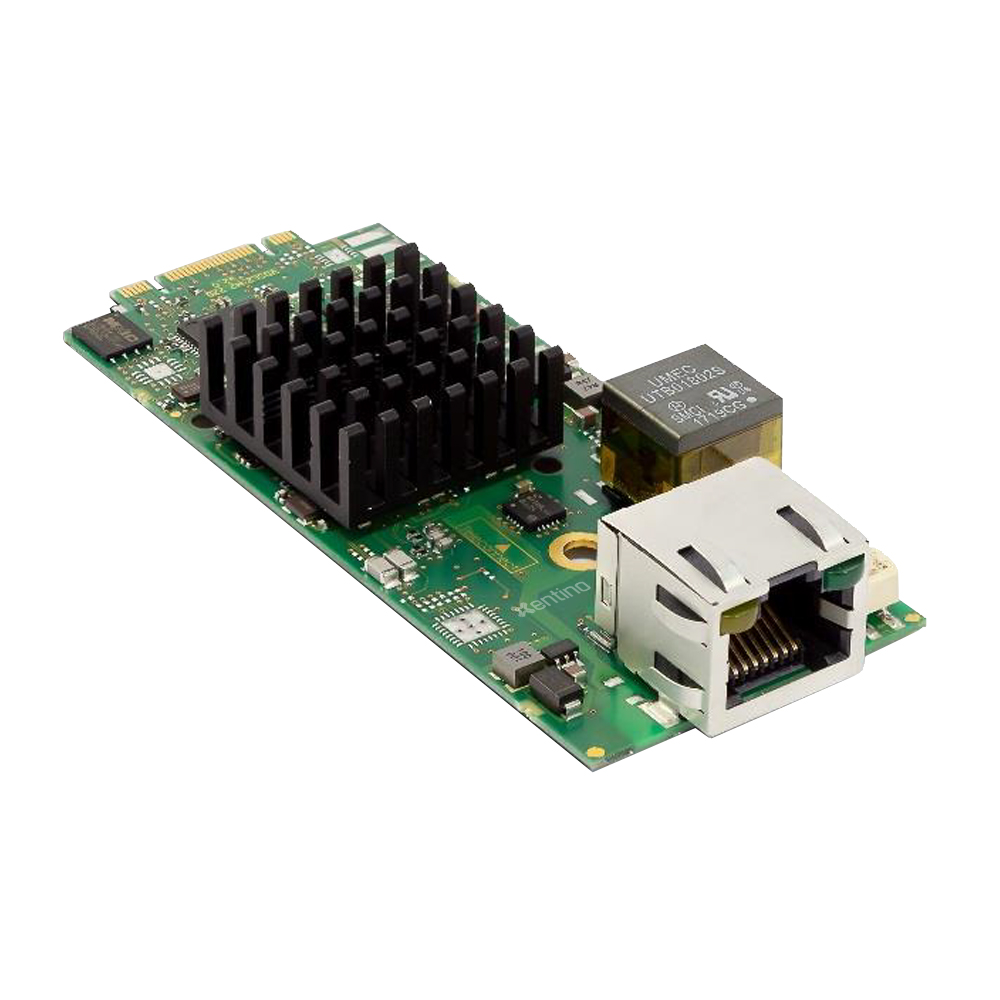

Xentino VS82T is an integrated VDSL2 modem module compatible with M.2 interface. Manufactured as a PCIe/M2 Module, the device is inserted into the PCIe M2 slot of SDWAN Boxes, Firewalls, Routers, WhiteBoxes and similar network devices with PCIe interfaces, and creates a WAN interface that terminates the VDSL2 line coming from the ISP. The M2 Module sized Modem is fully compatible with all commonly used DSLAMs. In addition to ITU-T G.993.2 VDSL2 profiles, it also supports ADSL2+ and VDSL technolo
Xentino VS82T is an integrated VDSL2 modem module compatible with M.2 interface. Manufactured as a PCIe/M2 Module, the device is inserted into the PCIe M2 slot of SDWAN Boxes, Firewalls, Routers, WhiteBoxes and similar network devices with PCIe interfaces, and creates a WAN interface that terminates the VDSL2 line coming from the ISP. The M2 Module sized Modem is fully compatible with all commonly used DSLAMs. In addition to ITU-T G.993.2 VDSL2 profiles, it also supports ADSL2+ and VDSL technolo
KEY FEATURES
• Support all VDSL2 standards defined in ITUT G.993.2
• Support G.inp (G.998.4) and G.Vector (G.993.5)
• Enables connectivity of virtualization device over copper networks for vCPE or White Box
• Carrier Grade High quality and interoperability based on our long-term knowledge
• Support high speed data up to VDSL2 profile 30a (Up to 200+Mbps)
PRODUCT OVERVIEW
VDSL2 Applications and Benefits
Designed to support the wide deployment of triple play services such as voice, video, data and high-definition television (HDTV), VDSL2 is intended to enable operators and carriers to gradually, flexibly and cost-efficiently upgrade existing xDSL infrastructure. Regarding to the big fiber deployments on SDWAN projects needs efficent backup connections with initial copper cable infrastructure. It also enables additional WAN connection with ADSL/VDSL2 connection possibilities for White Box, Routers, Firewalls and some of enhanced CPE devices.
High Speed internet connection (200+ Mbps or 5Km)
• Data rates up to 200+ Mbps downstream and upstream on twisted pairs using a bandwidth up to 30MHz
• VDSL2: ITU-T G.993.2 Profiles 8, 12, 17, 30MHz
• ADSL: ITU-T G.992.1/3/5 Annexes A, M, L (oPOTS)
• ADSL: ITU-T G.992.1/3/5 Annexes B, J (oISDN)
• ITU-T G.993.5 Vectoring
• ITU-T G.998.4 PHY Layer Re-Transmission profiles up to 30MHz
Software Services and Features
• Ethernet-to-PCIe Bridge (Standard NIC-Drivers)
• Gigabit Ethernet link to Ethernet-to-PCIe bridge
• Features depending on M.2 connector type (B+M):
o Core functionality at the PCIe lane 0 (available for key B and key M) for data and in-band management
o Additional function out-of-band management over USB (only for key B)
VDSL2-EFM Modem
• Plug & Play VDSL2 module for M.2
• ADSL fallback (auto-detection)
• Ethernet Controller
• Available for oPOTS and oISDN regions
• M.2 connector (Key B+M)
• Fully transparent bridge for VDSL2 and ADSL (1 VC), to enable routing on host
• Made for universal enterprise CPE like uCPE / IAD / Gateway / Router / PC / White Box CPE
** ADSL2/ ADSL2+ backward compatibility is possible, but currently not guaranteed or officially supported across all DSLAM vendors. Xentino is working with the relevant manufacturers to broaden support over time
