Xentino VX1700AC VDSL2 Extender Chassis.
Xentino VX1700AC VDSL2 Extender Chassis for VX100/VX110/VX200/VX210 AC Extenders. It collects 17pcs VX100/VX110 series extenders on the same rack. 2U, 19", 17Slot chassis with built-in single power Unit for AC powered extenders.
Xentino VX1700AC VDSL2 Extender Chassis for VX100/VX110/VX200/VX210 AC Extenders. It collects 17pcs VX100/VX110 series extenders on the same rack. 2U, 19", 17Slot chassis with built-in single power Unit for AC powered extenders.
KEY FEATURES
- Metal enclosure for robust installation in Utility applications
- Cost effective bridge function to connect two Ethernet LAN
- Easy installation via simple plug-and-play
- Built-in cooling fan supports wide operating temperature range
- 2U, 19”, 17-Slot chassis with single built-in power for AC
PRODUCT OVERVIEW

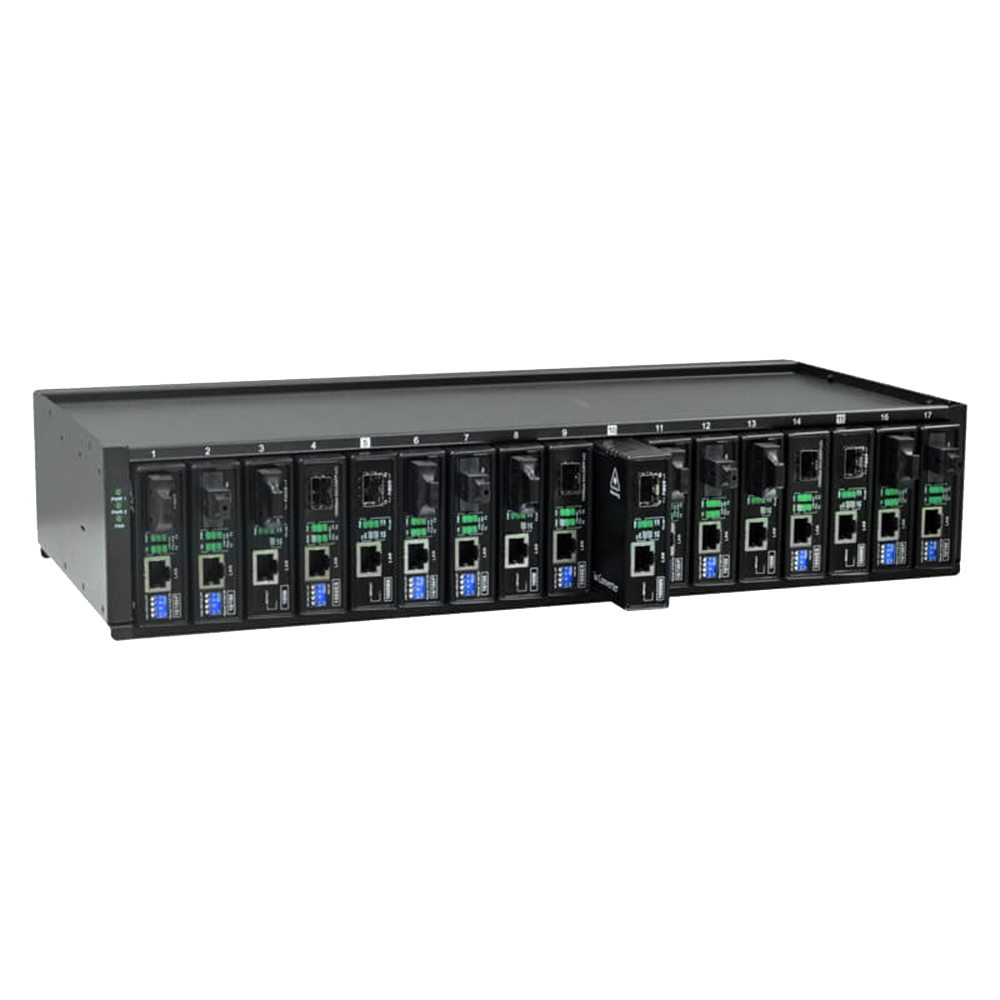

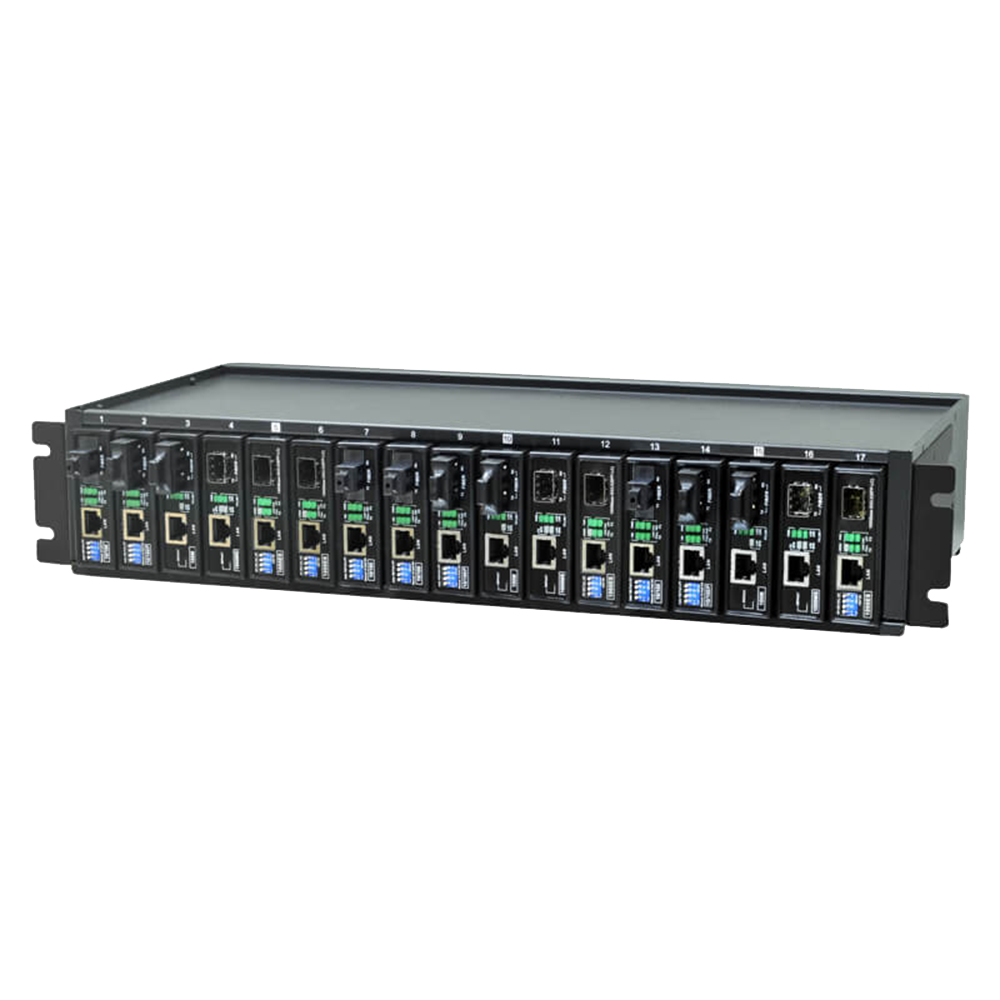

Xentino VX1700AC collects 17pcs VX100/VX110 series extenders on the same 2U, 19” rack chassis with built-in single power Unit for AC powered extenders.

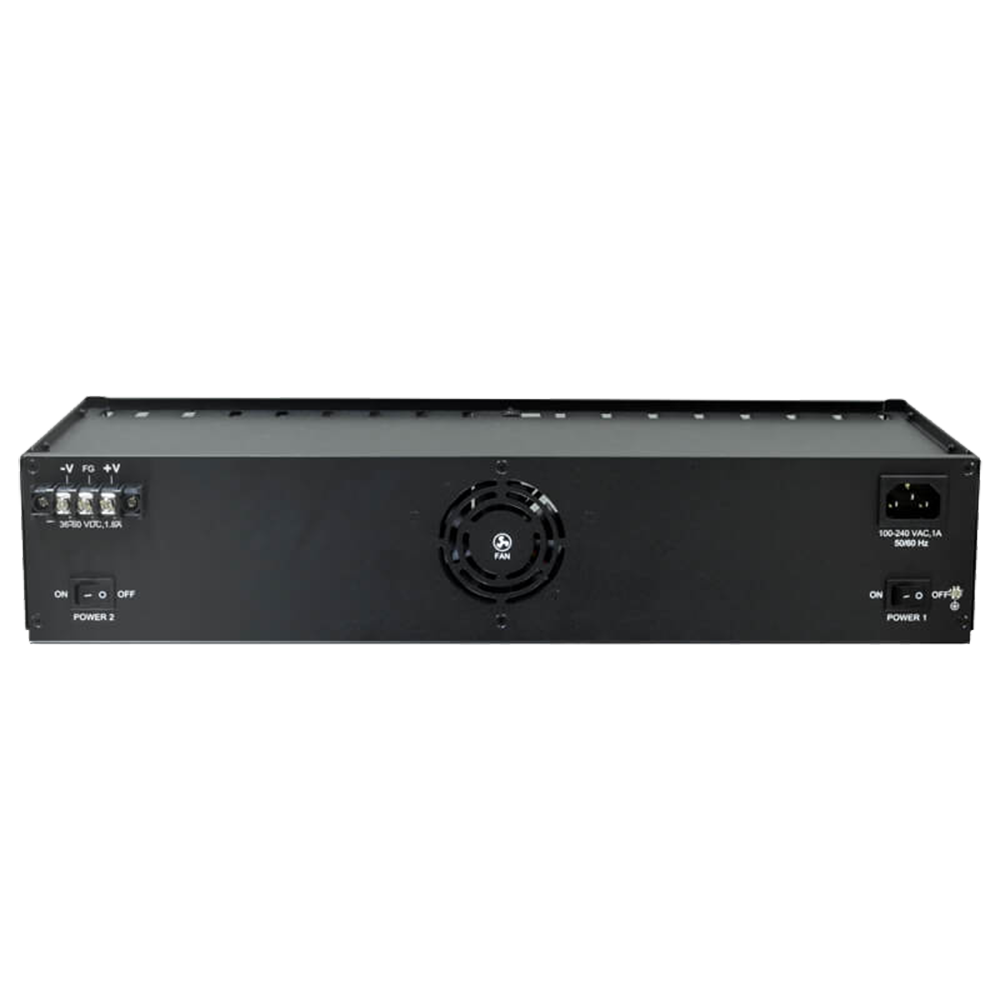

Xentino VX1700AC is the 2U hight 17slot 19” chassis. The chassis provides an economic solution in low density VDSL2 LAN Extender installations where no management features are required. Each VX100 or VX110AC VDSL2 LAN Extender may be used as a stand-alone device or placed in the VX1700AC chassis. The AC power supply operates from 100-240VAC. The built in cooling fan ensures that the temperature in the rack remains within operating temperatures.
|
Power Input |
AC: 100 ~ 240V |
|
Power Consumption |
< 60W |
|
Dimensions |
199 x 476 x 88mm (D x W x H) |
|
Weight |
7.9Kgs |
|
Temperature |
0° ~ 50°C (Operating) |
|
-10° ~ 70°C (Storage) |
|
|
Humidity |
10 ~ 90% non-condensing |
|
Certification |
CE, FCC |
|
MTBF |
65,000 hrs |
