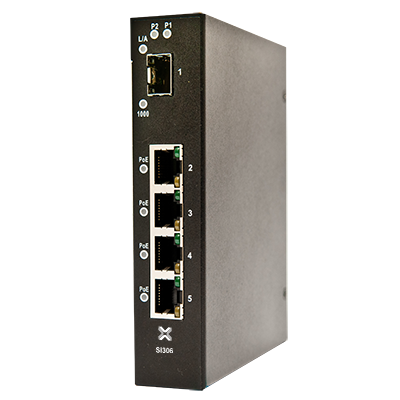

Xentino SI306 Industrial 5-port Gigabit PoE Ethernet Switch
Xentino SI306 PoE series are 5-port (4xPOE + 1xSFP), unmanaged full Gigabit Ethernet switches compliant with both IEEE 802.3af and IEEE 802.3at PoE standards and delivering up to 30 watts power per port along with data on standard ethernet cabling. The switches can be used to power IEEE 802.3af/at standard devices (PD), which eliminates the need for additional wiring and ease the deployment for applications to reach power source.
Xentino SI306 PoE series are 5-port (4xPOE + 1xSFP), unmanaged full Gigabit Ethernet switches compliant with both IEEE 802.3af and IEEE 802.3at PoE standards and delivering up to 30 watts power per port along with data on standard ethernet cabling. The switches can be used to power IEEE 802.3af/at standard devices (PD), which eliminates the need for additional wiring and ease the deployment for applications to reach power source.
- Full Gigabit Ethernet ports
- SFP support 100FX or 1000BaseF (SX/LX/LH)
- IEEE 802.3af PoE & IEEE 802.3at PoE+
- 9K Jumbo frames
- L2 wire-speed switching engine
- 2K MAC forwarding addresses
- Industrial design: Fanless, wide operating temperature range (-40 to +75°C), Dual power input (12~58 VDC, dual input), IP30, DIN-Rail and Wall mounting option
| Ethernet | |
| Operating mode | Store and forward L2 wire-speed/non-blocking switching engine |
| MAC addresses | 2K |
| Jumbo frames | 9K Bytes |
| Copper RJ45 Ports | 5 x 10/100/1000 Mbps speed auto-negotiation; MDI/MDIX Auto-crossover |
| SFP (pluggable) Ports | 100/1000BaseSFP slot |
| Fiber port connector | LC typically for fiber |
| Flow control | IEEE 802.3x (Full Duplex) and Back-Pressure (Half Duplex) |
| QoS | IEEE 802.1p, 4 queues per port |
| Traffic Shaper | Port-based Port shaping |
| Storm Control | Multicast/Broadcast/Flooding Storm Control per system basis enable/disable |
| PoE | IEEE 802.3at PoE PSE |
| Power | |
| Power input | Redundant Input Terminals Reverse power protection |
| Input voltage range | 12-58 VDC |
| Indicators | |
| Power Status indication | Indication of power input status |
| Ethernet port indication | Link & Speed |
| PoE power indication | PoE power status indication |
| Environmental and Compliances | |
| Operating temperature range | -40 to +75°C (cold startup at -40°C) |
| Storage temperature range | -40 to +85 °C |
| Humidity | 5 to 95% RH (non-condensing) |
| Vibration, shock & freefall | IEC60068-2-6, -27, -32 |
| Certification compliance | CE/FCC/UL-508; EN-50121-4; DNV/ATEX |
| Electrical safety | UL508/CSA C22, EN61010-1, CE |
| EMC | FCC Part 15 Subpart B Class A, CISPR 22 (EN55022) Class A IEC61000-4-2, -3, -4, -5, -6 (Level 3) |
| RoHS and WEEE | RoHS (Pb free) and WEEE compliant |
| MTBF | > 25 years |
| Mechanical | |
| Ingress protection | IP30 |
| Dimension | 136mm(H) x 29mm (W) x 106mm (D) ( without DIN rail clip) |
| Weight | 375g |
| Installation option | DIN-Rail mounting Wall mounting |
