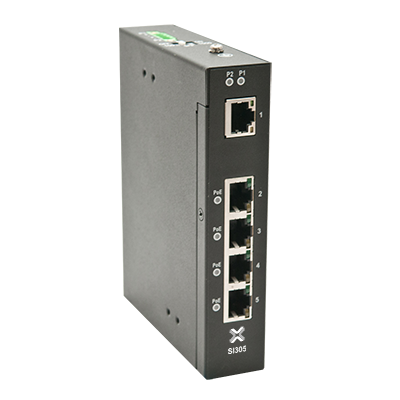

Xentino SI305 Industrial 5-port Gigabit PoE Ethernet Switch


Xentino SI305 PoE series are 5-port (4xPOE + 1xGigaTX), unmanaged full Gigabit Ethernet switches compliant with both IEEE 802.3af and IEEE 802.3at PoE standards and delivering up to 30 watts power per port along with data on standard ethernet cabling. The switches can be used to power IEEE 802.3af/at standard devices (PD), which eliminates the need for additional wiring and ease the deployment for applications to reach power source.

Xentino SI305 PoE series are 5-port (4xPOE + 1xGigaTX), unmanaged full Gigabit Ethernet switches compliant with both IEEE 802.3af and IEEE 802.3at PoE standards and delivering up to 30 watts power per port along with data on standard ethernet cabling. The switches can be used to power IEEE 802.3af/at standard devices (PD), which eliminates the need for additional wiring and ease the deployment for applications to reach power source.

  • Full Gigabit Ethernet ports
  • IEEE 802.3af PoE & IEEE 802.3at PoE+
  • 9K Jumbo frames
  • L2 wire-speed switching engine
  • 2K MAC forwarding addresses
  • Industrial design: Fanless, wide operating temperature range (-40 to +75°C), Dual power input (12~58 VDC, dual input), IP30, DIN-Rail and Wall mounting option



Ethernet
Operating mode Store and forward
L2 wire-speed/non-blocking switching engine
MAC addresses 2K
Jumbo frames 9K Bytes
Copper RJ45 Ports 4 x 10/100/1000 Mbps speed auto-negotiation;
MDI/MDIX Auto-crossover
Flow control IEEE 802.3x (Full Duplex) and Back-Pressure(Half Duplex)
QoS IEEE 802.1p, 4 queues per port
Traffic Shaper Port-based Port shaping
Storm Control Multicast/Broadcast/Flooding Storm Controlper system basis enable/disable
PoE IEEE 802.3at PoE PSE
Power
Power input Redundant Input Terminals
Reverse power protection
Input voltage range 12-58 VDC
Indicators
Power Status indication Indication of power input status
Ethernet port indication Link & Speed
PoE power indication PoE power status indication
Environmental and Compliances
Operating temperature range -40 to +75°C (cold startup at -40°C)
Storage temperature range -40 to +85 °C
Humidity 5 to 95% RH (non-condensing)
Vibration, shock & freefall IEC60068-2-6, -27, -32
Certification compliance CE/FCC/UL-508; EN-50121-4; DNV/ATEX
Electrical safety UL508/CSA C22, EN61010-1, CE
EMC FCC Part 15 Subpart B Class A, CISPR 22
(EN55022) Class A
IEC61000-4-2, -3, -4, -5, -6 (Level 3)
RoHS and WEEE RoHS (Pb free) and WEEE compliant
MTBF > 25 years
Mechanical
Ingress protection IP30
Dimension 136mm(H) x 29mm (W) x 106mm (D) ( without DIN rail clip)
Weight 375g
Installation option DIN-Rail mounting
Wall mounting
