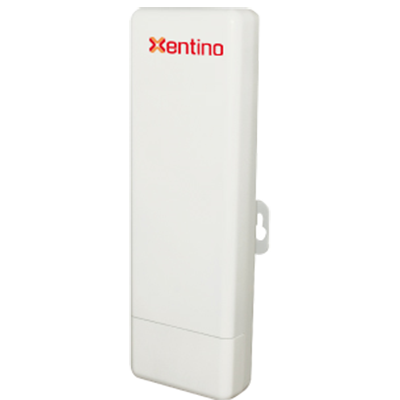

Xentino XAIR R301M 2G/3G Outdoor Router 1T1R 150Mbps

Xentino XAIR R301M 2G/3G Outdoor Router 1T1R 150Mbps


Xentino’s whole new design OUTDOOR 3G Embedded Solution, users can only plug in a 3G SIM card to enable internet service. Besides, it also allows you to link to DSL/Cable modem for internet connection. Solution, users can only plug in a 3G SIM card to enable internet service. Besides, it also allows you to link to DSL/Cable modem for internet connection.

R301M is ideally for users requiring an internet service from far away in signal coverage. For instance, host of ranch house or dude ranch or etc. Perhaps they need to check mail or update information anytime when working at the farm/field. It’s really a good partner for host’s efficiency improvement that unnecessary to walk long distance for internet service.

  • Build-in Qualcomm 3G module
  • o HSDPA 7.2Mbps
  • o HSUPA 5.76Mbps
  • o WCDMA 384Kbps
  • o EDGE 237Kbps DL, 118Kbps UL
  • o GPRS 85.6Kbps DL, 42.8Kbps UL
  • Support advanced 1 x 1 Technology with up to150Mbps downstream and upstream
  • Complies with 2.4GHz IEEE802.11n and IEEE802.11b/g standards
  • Low Noise Amplifier (LNA) support
  • Support 20MHz and 40MHz bandwidth
  • Operation mode : Bridge, Gateway, Ethernet Converter
  • Wireless security - 64/128bit WEP, WPA TKIP, WPA2AE2, 802.1x
  • Support PPPoE, VPN pass-through (L2TP, IPSec and PPTP)
  • Wireless mode : AP, Client, WDS
  • DHCP Server/Client
  • RF output power adjustable
  • Virtual DMZ, Port Forwarding, Dynamic DNS
  • Firewall, URL/IP/Port/MAC filtering
  • Wireless users access control, NTP client
  • QoS enhancement - WMM
  • WPS by PIN
  • Support Power over Ethernet (PoE passive)
  • PoE injector with Reset button

Wireless LAN Standard

IEEE 802.11b/g/n

Support 3G Standard　

UMTS/ HSDPA / HSUPA/ CDMA

Chipset

Ralink RT3050F

Frequency Band

802.11 b/g/n:2.412GHz ~ 2.484GHz
WCDMA：850/2100MHZ OR 900/2100

Security

64/128bit WEP
WPA(TKIP with IEEE 802.1x)
WPA2(AES with IEEE 802.1x)

Data Rates for 2.4G

802.11b：11,5.5,2 and 1 Mbps with auto-rate fall back
802.11g：54,48,36,24,18,12,9&6Mbps
802.11n：(20MHz)：up to 72Mbps
802.11n：(40MHz)：up to 150Mbps

Data Rates for 3G

HSUPA uplink up to 5.76Mbps
HSDPA downlink up to 7.2Mbps
WCDMA (UMTS) uplink data rate up to 384 kbps

Sensitivity

-93dBm @ 802.11b
-91dBm @ 802.11g
-89dBm @ 802.11n

Output Power(Typical)

802.11b: up to 27 ± 1 dBm
802.11g: up to 26 ± 1 dBm
802.11n: up to 22 ± 1 dBm

3G Power Class

WCDMA：power class 3

Media Access Control

CSMA/CA

Antenna

Two SMA Connecters
-one for 2.4GHz
-one for 3G signal

Operation Mode

Gateway
Bridge
WISP

Wireless Mode

AP
Client
WDS

Connector

One RJ-45 WAN port
One RJ-45 LAN port
USB(for 3G dongle)
SIM card slot
Two antenna connectors

Operation Temperature

-0°C ~ 70°C

Storage Humidity

10% ~ 90% (Non-condensing)

Power requirement

12V DC/1.5A

LED

WLAN, LAN, POWER, WAN
