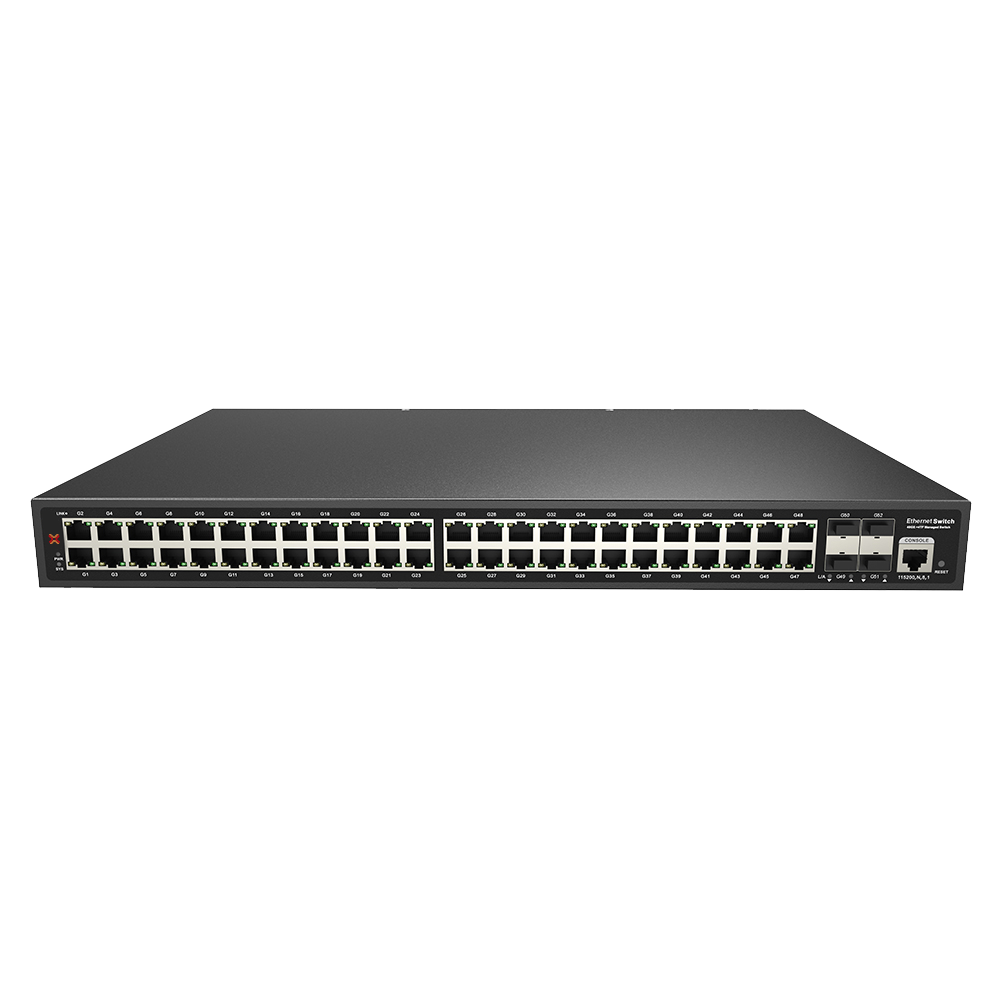

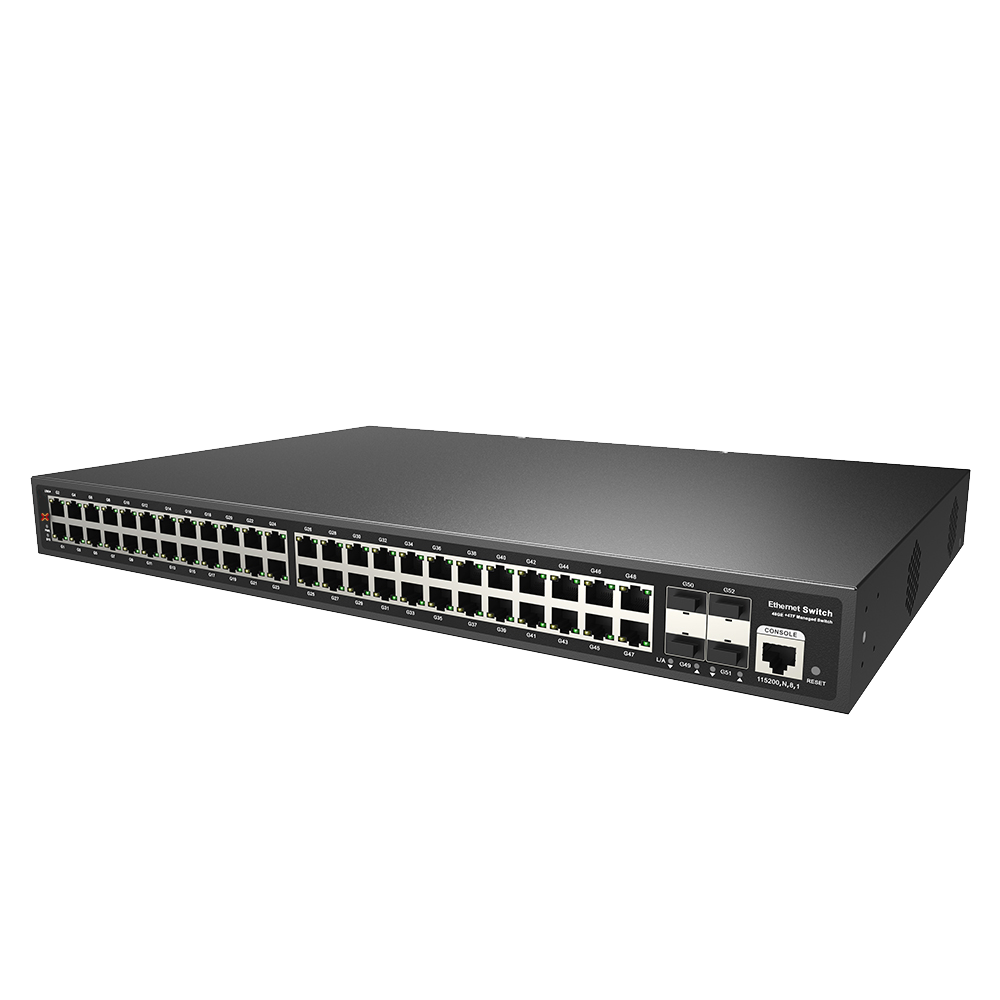

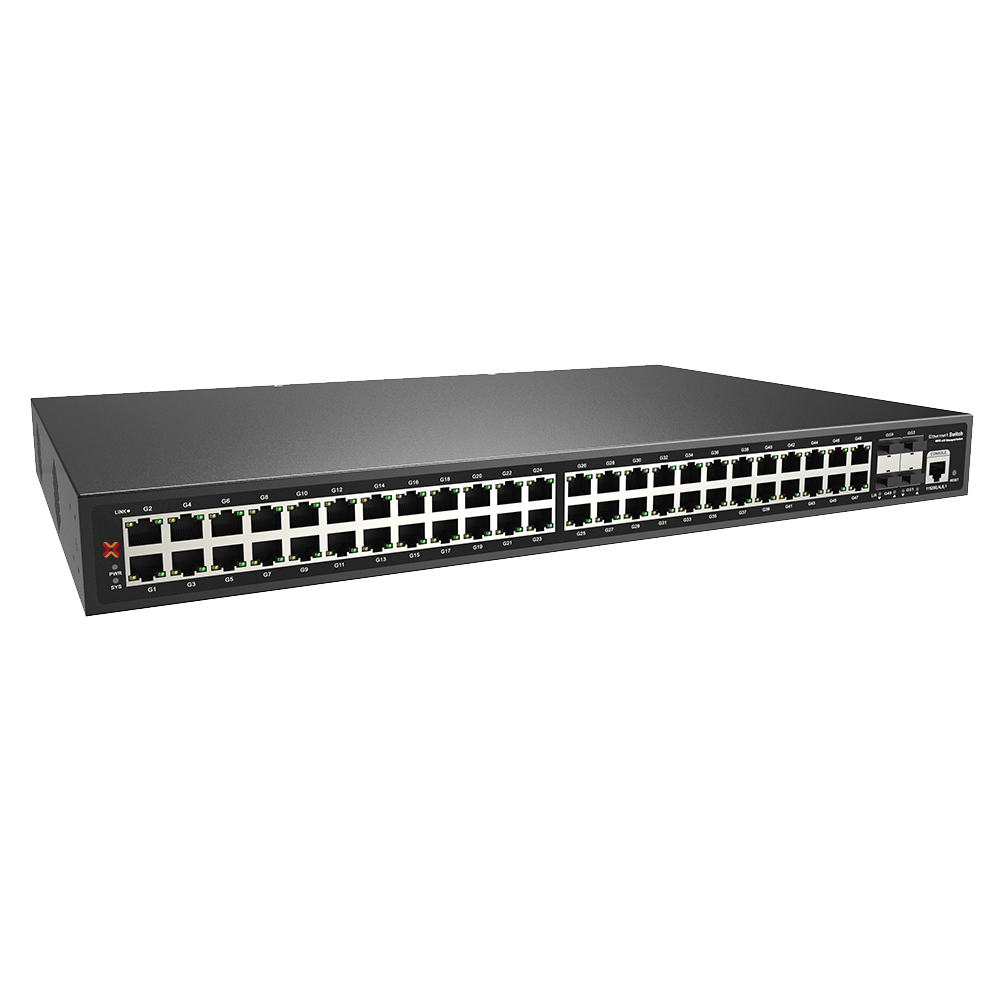

Xentino S4804G 48Port Gigabit + 4Port SFP L2+ Managed Switch.
The S4804G is a full gigabit L2+ managed Ethernet fiber switch independently developed by Xentino. It has 48*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber slot ports. Each port can support wire-speed forwarding.
Xentino S4804G üzerinde 48adet 10/100/1000Mbps Ethernet portu, 4adet 1G SFP yuvası bulunan L2+ yönetilebilir network switchtir. 368Gbps Anahtarlama Kapasitesi, 16K MAC desteği, standart 1U Rack montantajlı yapıya sahip orta segment güçlü network switchtir.
OVERVIEW
The S4804G is a full gigabit L2+ managed Ethernet fiber switch independently developed by Xentino. It has 48*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber slot ports. Each port can support wire-speed forwarding.

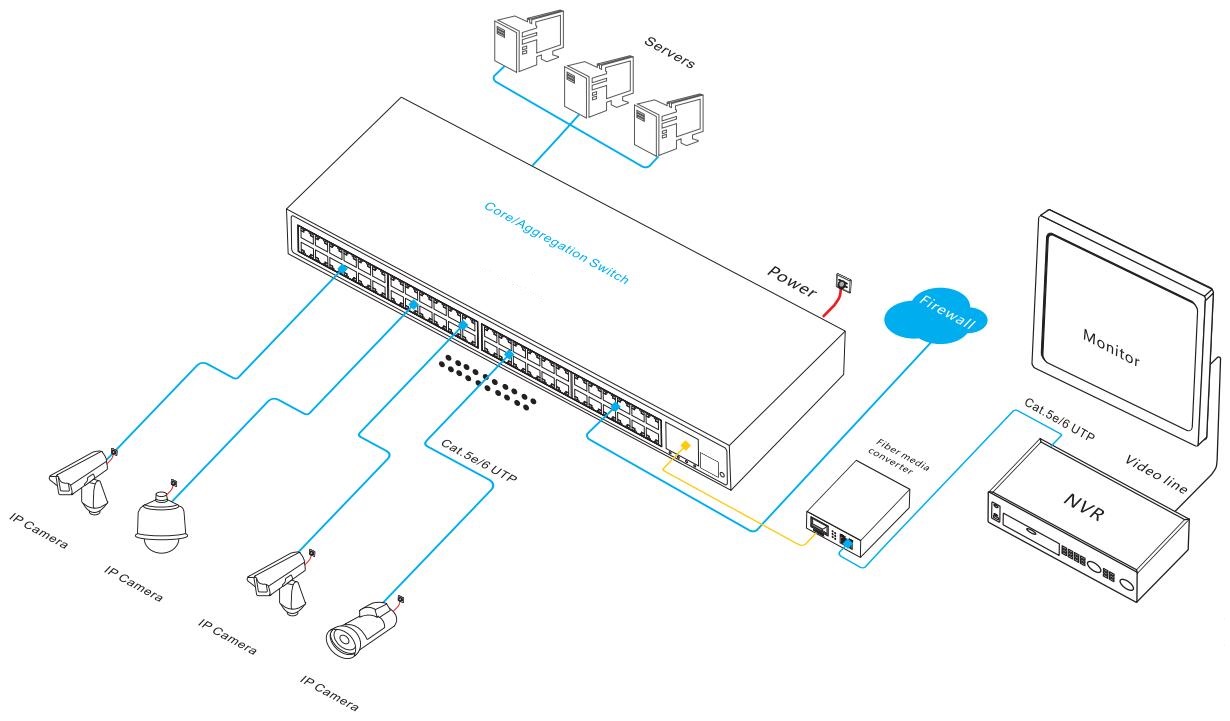

The S4804G has L2+ network management function, supports IPV4 management and static routing and forwarding, complete security protection mechanism, perfect ACL/QoS strategy and rich VLAN function, easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP (<50ms) to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure uninterrupted communication for important transmissions. The switch supports flexible operation and maintenance management, and can be configured through various application services such as Web, CLI, SNMP, Telnet and other network management methods, port flow control, VLAN division, QoS and other functions. It can meet the multi-channel video surveillance and wireless coverage network application environment. Suitable for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories and SMB small and medium-sized enterprises to form a cost-effective network.
FEATURES
Gigabit wire speed access, SFP port uplink
- Supports Gigabit Ethernet port and gigabit SFP uplink port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Strong business processing capability
- Support IEEE 802.1Q VLAN, protocol VLAN, users can flexibly divide VLAN according to their needs.
- QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithmincluding Equ, SP, WRR & SP+WRR.
- ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
- IGMP V1/V2 and IGMP Snooping.
- STP/RSTP/MSTP.
- Static and dynamic aggregation.
Security
- 802.1X authentication.
- Port isolation,Storm control.
- IP-MAC-VLAN-Port binding.
Stable and reliable
- CCC,CE, FCC, RoHS.
- Low power consumption, galvanized steel casing, no fan.
- Self-developed power supply, high redundancy design, providing a long term and stable power output.
- The user-friendly panel can show the device status through the LED indicator of PWR, CCC,CE, FCC, RoHS.
- The user-friendly pane can show the device status through the LED indicator of PWR, Link ,PoE.
Easy operation and maintenance management
- Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).
- HTTPS, SSLV3, and SSHV1/V2.
- RMON, system log, LLDP, and port traffic statistics.
- CPU monitoring, memory monitoring, Ping test, and cable diagnose.
TECHNICAL SPECIFICATION
|
XENTINO S4804G |
|
|
Interface Characteristics |
|
|
Fixed Port |
48*10/100/1000Base-T PoE ports (Data) 4*100/1000Base-X uplink SFP slot ports(Data) 1*RS232 console port(115200,N,8,1) |
|
Ethernet Port |
Port 1-48 can support 10/100/1000BaseT(X) auto detect, full/half duplex MDI/MDI-X adaptive |
|
Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) |
|
SFP Slot Port |
Gigabit SFP optical fiber interface, default optical modules (optional single-mode / multi-mode, single fiber / dual fiber optical module. LC) |
|
Optical Cable/ Distance |
Multi-mode:850nm / 0~500M (1.25G), Single-mode:1310nm / 0~40KM, 1550nm / 0~120KM. |
|
Chip Parameter |
|
|
Network Management Type |
L2+ |
|
Network Protocol |
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
|
Forwarding Mode |
Store and Forward(Full Wire Speed) |
|
Switching Capacity |
368Gbps (Non-blocking) |
|
Forwarding Rate |
77.38Mpps (@64byte) |
|
CPU |
750MHz |
|
DRAM |
1G |
|
FLASH |
256M |
|
MAC |
16K |
|
Buffer Memory |
12M |
|
Jumbo Frame |
10K |
|
LED Indicator |
Power: PWR (Yellow), System: SYS (Yellow), Network: Link/Act (Yellow), Fiber port: L/A(Green) |
|
Reset Switch |
Yes, One-button factory reset |
|
Power Supply |
|
|
Total PWR / Input Voltage |
60W (AC100-240V) |
|
Power Consumption |
Standby<35W, Full Load<55W |
|
Power Supply |
Built-in power supply, AC 100~240V 50-60Hz 6.6A |
|
Physical Parameter |
|
|
Operation TEMP / Humidity |
-20~+55°C, 5%~90% RH Non condensing |
|
Storage TEMP / Humidity |
-40~+75°C, 5%~95% RH Non condensing |
|
Dimension |
440*290*44.5mm (L*W*H) |
|
Net /Gross Weight |
<4.4kg / <5.0kg |
|
Form Factor |
Desktop, Wall-Mounted, 19 inch 1U cabinet |
|
Certification & Warranty |
|
|
Lightning Protection / Protection Level |
Lightning protection: 4KV 8/20us; Protection level: IP30 |
|
Certification |
CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B;RoHS |
|
Warranty |
3 years, lifelong maintenance. |
|
Network Management Features |
|
|
Interface |
IEEE802.3X (Full-duplex) Port temperature protection setting Port green Ethernet Energy-saving setting Broadcast storm control based on port speed The speed limit of the message flow in the access port. The minimum particle size is 64Kbps. |
|
Layer 3 Features |
IPV4 static route/default route, maximum 128 entries L2+ network management, ARP protocol, maximum 1024 entries |
|
VLAN |
VLAN based on the protocol, 4K VLAN based on port, IEEE802.1q VLAN based on MAC, Port configuration of Access, Trunk, Hybrid |
|
Port Aggregation |
LACP, Static aggregation Max 26 aggregation groups and 8 ports per group. |
|
Spanning Tree |
STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s) |
|
Multicast |
MLD Snooping v1/v2,Multicast VLAN IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out |
|
Port Mirroring |
Bidirectional data mirroring based on port |
|
QoS |
Flow-based Rate Limiting Flow-based Packet Filtering 8*Output queues of each port 802.1p/DSCP priority mapping Diff-Serv QoS,Priority Mark/Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) |
|
ACL |
Port-based Issuing ACL, ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc. |
|
Security |
IP-MAC-VLAN-Port binding ARP inspection,Anti-DoS attack AAA & RADIUS,MAC learning limit Mac black holes,IP source protection IEEE802.1X & MAC address authentication Broadcast storm control,Backup for host datum SSH 2.0,SSL,Port isolation,ARP message speed limit User hierarchical management and password protection |
|
DHCP |
DHCP Client,DHCP Snooping, DHCP Server,DHCP Relay |
|
Management |
One-key recovery Cable Diagnose,LLDP Web Management (HTTPS) NTP,System work log,Ping Test CPU instant utilization status view Console/AUX Modem/Telnet/SSH2.0 CLI Download & Management on FTP, TFTP, Xmodem, SFTP,SNMP V1/V2C/V3 ONV NMS - smart network management system platform(LLDP+SNMP) |
|
System |
Category 5 Ethernet network cable Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later; TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in a network |
