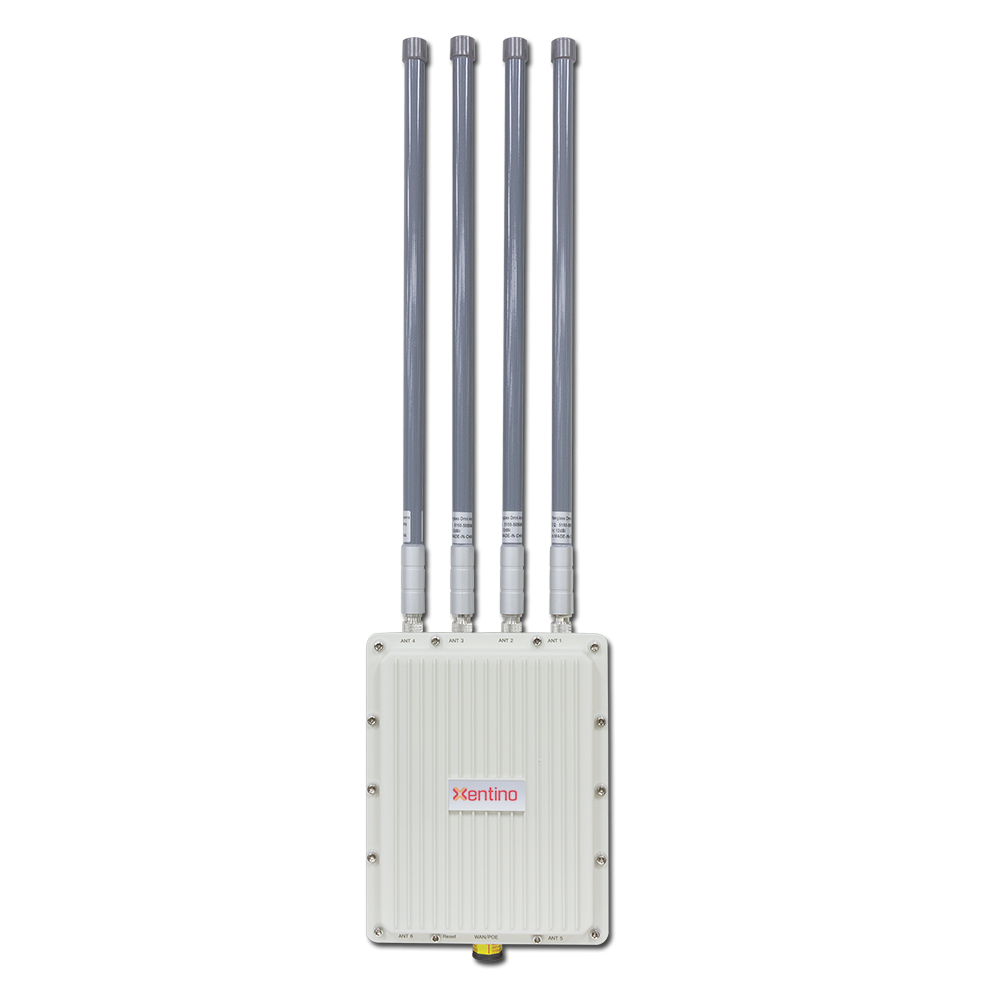

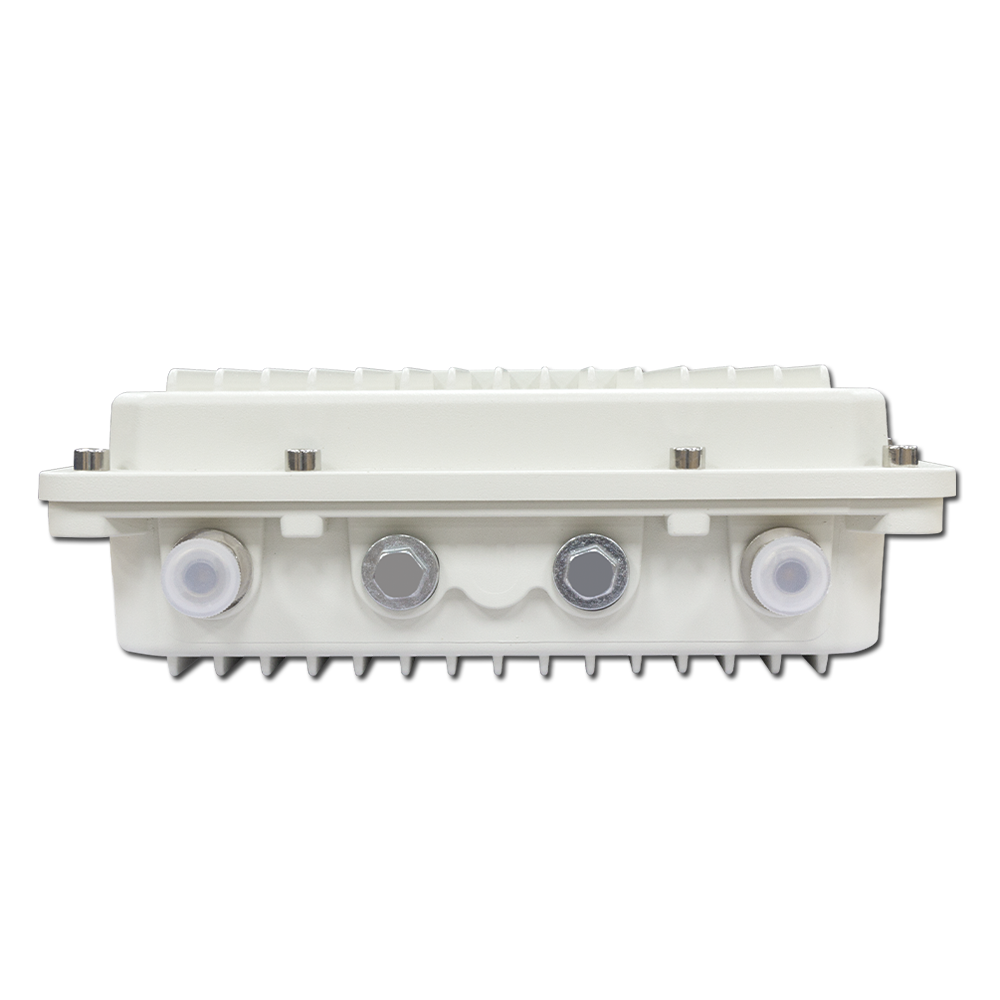

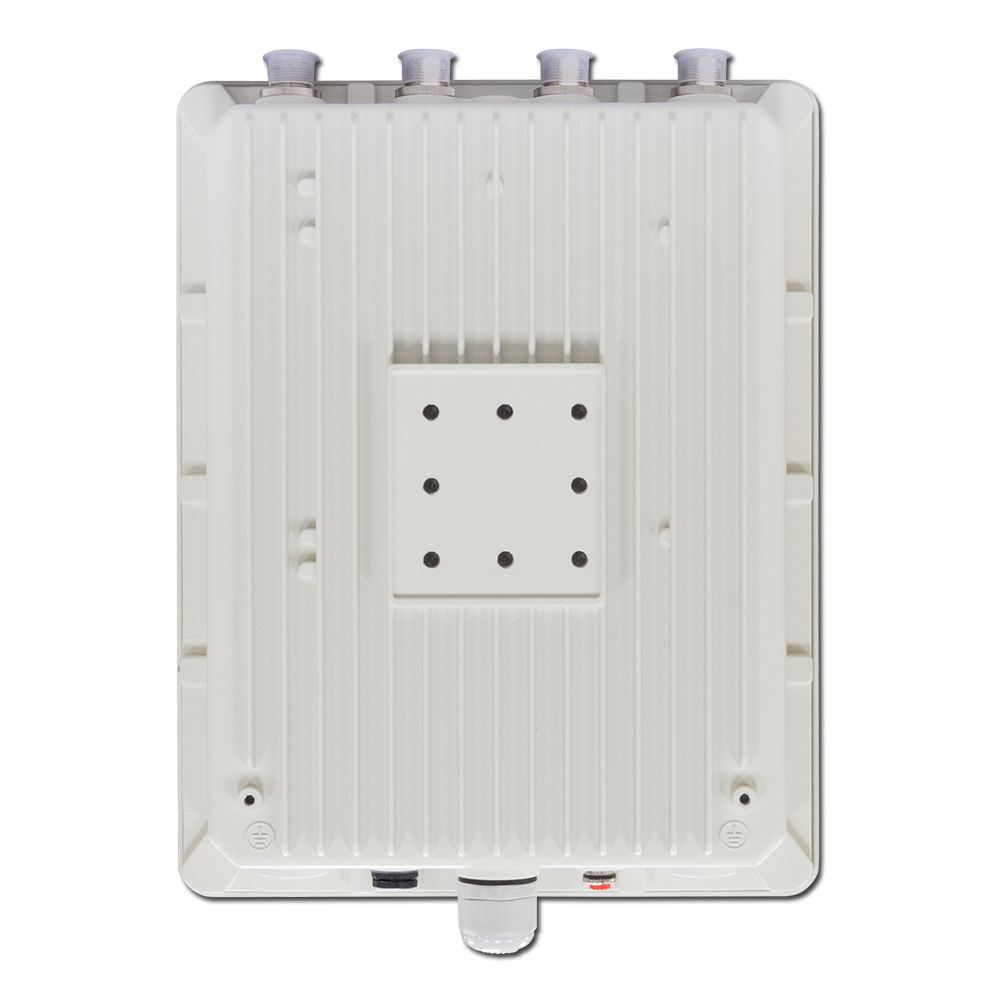

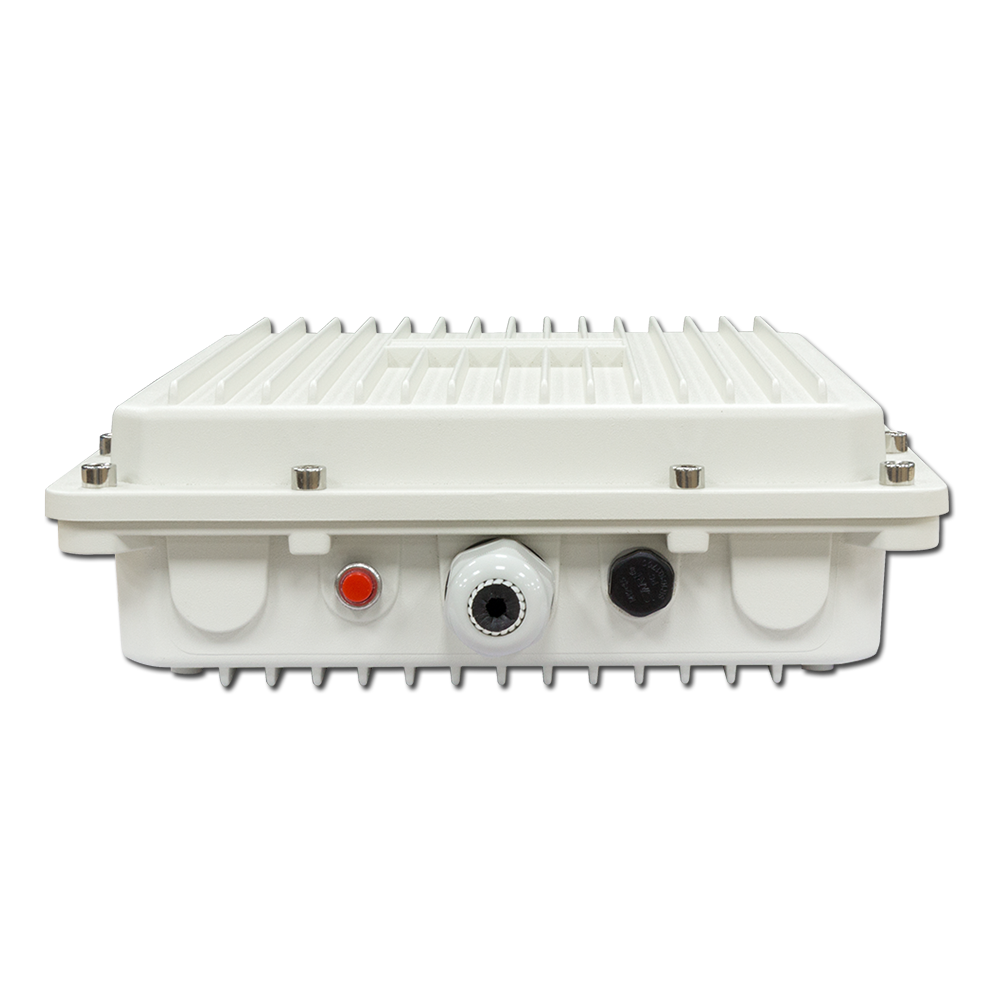

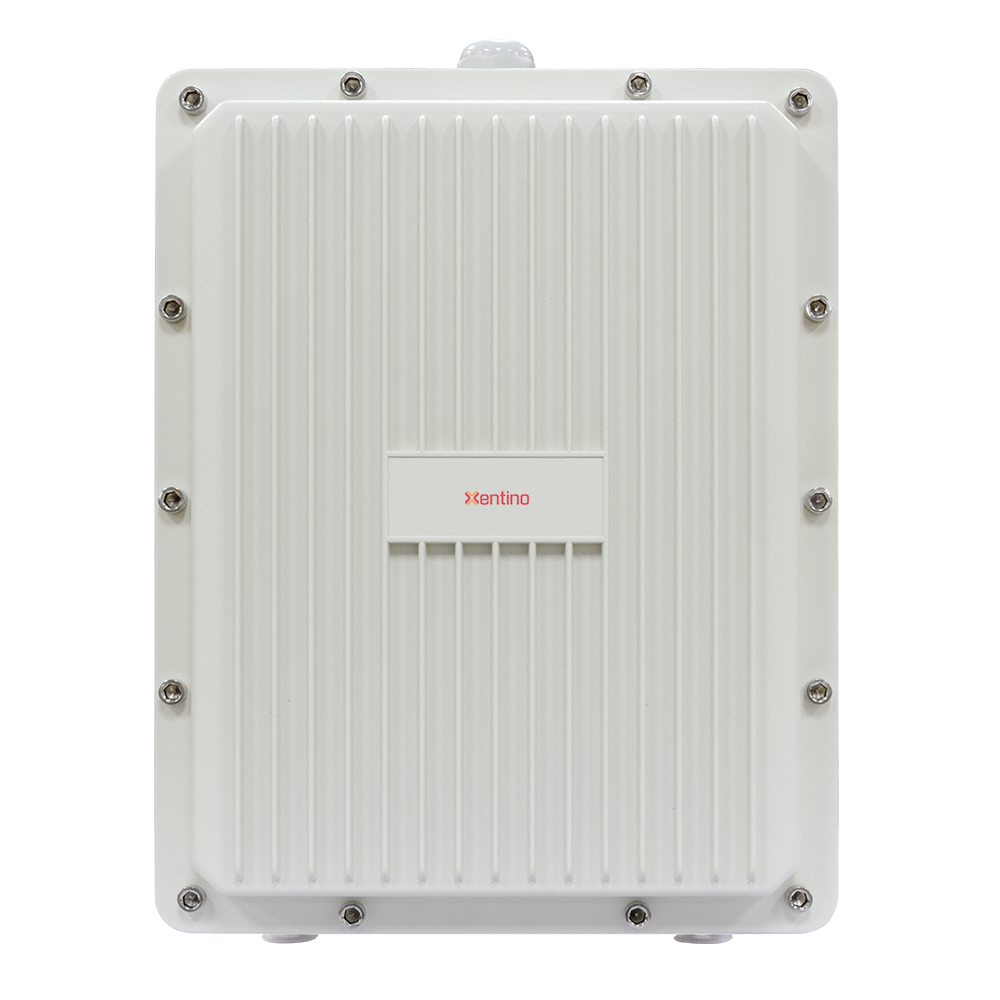

Xentino DA840 11ax 1800Mbps Outdoor Wireless AP


DA840 is an 11ax Wi-Fi standard Outdoor Wireless AP with Qualcomm Chipset, it support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming. Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2)+5GHz (1200Mbps 2*2), equipped 1G WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation.

DA840 is an 11ax Wi-Fi standard Outdoor Wireless AP with Qualcomm Chipset, it support MU-MIMO, Wave2.0, OFDMA and Seamless Roaming. Combined 1800Mbps Wi-Fi speed over 2 radios: 2.4GHz (600Mbps 11ax 2*2)+5GHz (1200Mbps 2*2), equipped 1G WAN & LAN ports, support MU-MIMO and DL/UL-OFDMA modulation.

Main Features

  • Comply with IEEE 802.11ax/ac/b/g/n, dual band, 1800Mbps Data Rate
  • With IPQ6000 , Flash: SPI NOR 8MB (1.8v) + NAND 128MB, greatly improved the data processing performance.
  • 1*10/100/1000Mbps RJ45 Port, faster Ethernet.
  • With Skyworks power amplifier and FEM, 300mW high power, N type antenna connector for high gain antenna, stronger signal strength, more wireless coverage.
  • Support active IEEE 802.3at 48V PoE standard
  • Comply with IEEE 802.3az standard, RF power adjustment and frequency analyzer for better application in different environment
  • Support Seamless Roaming, OFDMA,1024-QAM



Hardware

Chipset

IPQ6000

Standard

802.11ax/ac/b/g/n

Flash

SPI NOR 8MB (1.8v) + NAND 128MB

RAM

DDR3L 1GB

2.4G Frequency

2.4GHz - 2.484GHz

2.4G Wi-Fi standard

802.11b/g/n

5.8G Frequency

5150~5850MHz

5.8G Wi-Fi Standard

802.11 ax/ac

Interface

1 * 10/100 /1000 RJ45 WAN Port

1 * Reset button, press 10 seconds to revert to default setting

Antenna

N type antenna connector

Data Rate

1800Mbps

End Users

160+

RF Power

≤ 24dBm

DC

12V----2A

PoE

48V (IEEE 802.3at)

LED light

Sys, WAN, LAN

Power Consumption

≤ 24W

Size



Weight



Others

Package Contents

1800Mbps Dual Band wireless access point

Ethernet Cable

Quick Installation Guide

Installation Accessory

Environment

Operating Temperature: -20~45 ℃

Limit working temperature: -30~70 ℃

Storage Temperature: 0~70 ℃

Humidity: 5%~95% non-condensing
